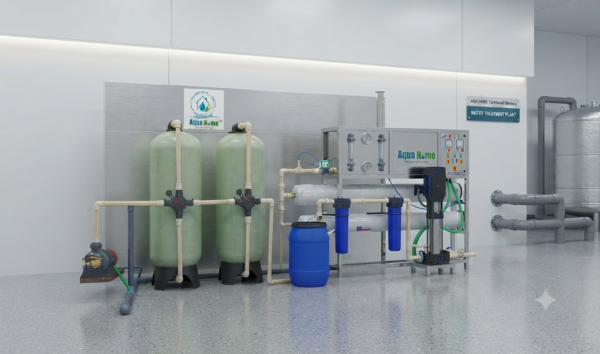

AH 5000 LPH RO PLANT ( MANUAL / SEMI AUTO / CUSTOMISED)

Key Technical Specifications
• Capacity: 5,000 Litres Per Hour (approx. 50%–60% water recovery rate)
• Raw Water Pump: 3 HP -5 hp, 3-phase motor for feed intake
• Multi-Media Sand Filter: FRP vessel (approx. 18" x 65") packed with quartz sand and gravel for suspended solids
• Activated Carbon Filter: FRP vessel (approx. 18" x 65") with coconut-shell carbon to remove chlorine, odor, and organics
• Antiscalent Dosing System: Electronic solenoid-driven chemical dosing pump to prevent membrane scaling
• Micron Cartridge Filter (PP): 30" x 2.5" (5-micron rating, set of 6) for fine particle trapping before high-pressure pumping
• High-Pressure Pump: ~7.5 HP vertical multi-stage centrifugal pump
• RO Membranes & Housing: Thin-Film Composite (TFC) membranes (e.g., 8040 elements) housed in SS or FRP pressure tubes
• Control & Instrumentation: Manual multi-port valves for pre-filters combined with a semi-automatic starter panel (push buttons, MCBs, pressure gauges, and rotameters)
If you're planning an installation, tell us:
• What is your raw water TDS level and source (borewell vs municipal)?
• Do you need an integrated UV or ozone disinfection stage at the output?
we can help refine the membrane configuration or suggest local engineering checks.
