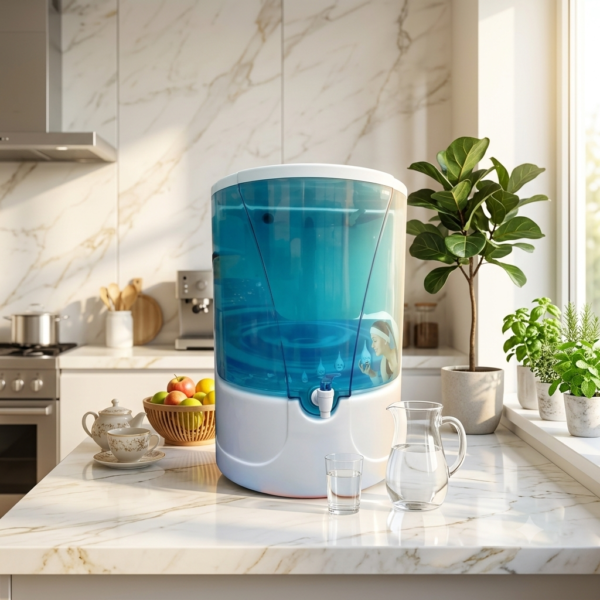

AquaHome UV system

Technical Specifications
Parameter Standard Specification
Purification Capacity 1.0 to 2.0 Liters / Minute (60–120 LPH)
Technology Sediment + Activated Carbon + UV-C Chamber (+ optional UF)
UV Lamp Power 8W to 11W Philips/Osram UV-C lamp (254 nm wavelength)
UV Chamber Material Food-grade Stainless Steel (SS 304) or quartz sleeve
Water Wastage Zero water wastage (100% water recovery)
Applicable TDS Level Up to 200–300 ppm (Low TDS source water)
Operating Pressure 0.3 to 3.0 bar (works on normal overhead tank gravity pressure)
Power Consumption ~15W to 25W during purification; standby < 2W
Multi-Stage Purification Stages
• Sediment Pre-Filter (5 Micron): Captures physical contaminants such as silt, sand, rust particles, and suspended mud.
• Pre-Carbon / Activated Carbon Block: Traps volatile organic compounds (VOCs), absorbs chlorine, removes pesticide residue, and eliminates bad odor.
• Ultrafiltration (UF) Hollow Fiber (Optional, 0.01 Micron): Physically strains out dead cysts, protozoa, and fine turbidity before water enters the UV light.
• UV Disinfection Chamber: The water flows through a high-intensity UV-C chamber where short-wavelength radiation disrupts the DNA/RNA of bacteria (e.g., E. coli, Salmonella) and viruses, rendering them harmless.
• Post-Carbon Cartridge: Delivers a final polishing pass to ensure natural, fresh-tasting drinking water.
